The Bally Electro-Mechanical manual includes the best of 7 original Bally service manuals and more material added by the author. They cover trouble shooting, service, repair, lubrication with many diagrams of basic components and wiring circuits that illustrate their functions and parts in detail. Also, there are tips on maintenance and repair. Spiral coil binding.
$29.95 plus $4.50 Shipping Sent by Priority Mail.

Show Me More Pages

  Back to Manual Pages

 Like to Order


 Left
Table of Contents
There are 59 Headings covering every aspect of the Bally Electro- Mechanical in the 110 pages.

Right
Back Cover
This page shows examples of the many components, the numerous wiring diagrams, how to calculate the payout percentage, the parts and the tools needed to work on these slots.



 Left
Hopper Assembly
The are numerous assemblies broken down twith each part named.

Right

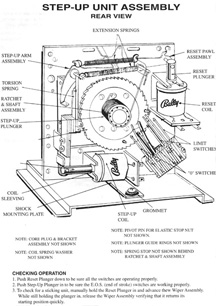

Step-Up Assembly
The diagrams include the solenoids, switches and the various parts that are used on the umit. Also included is the operation of the unit.
